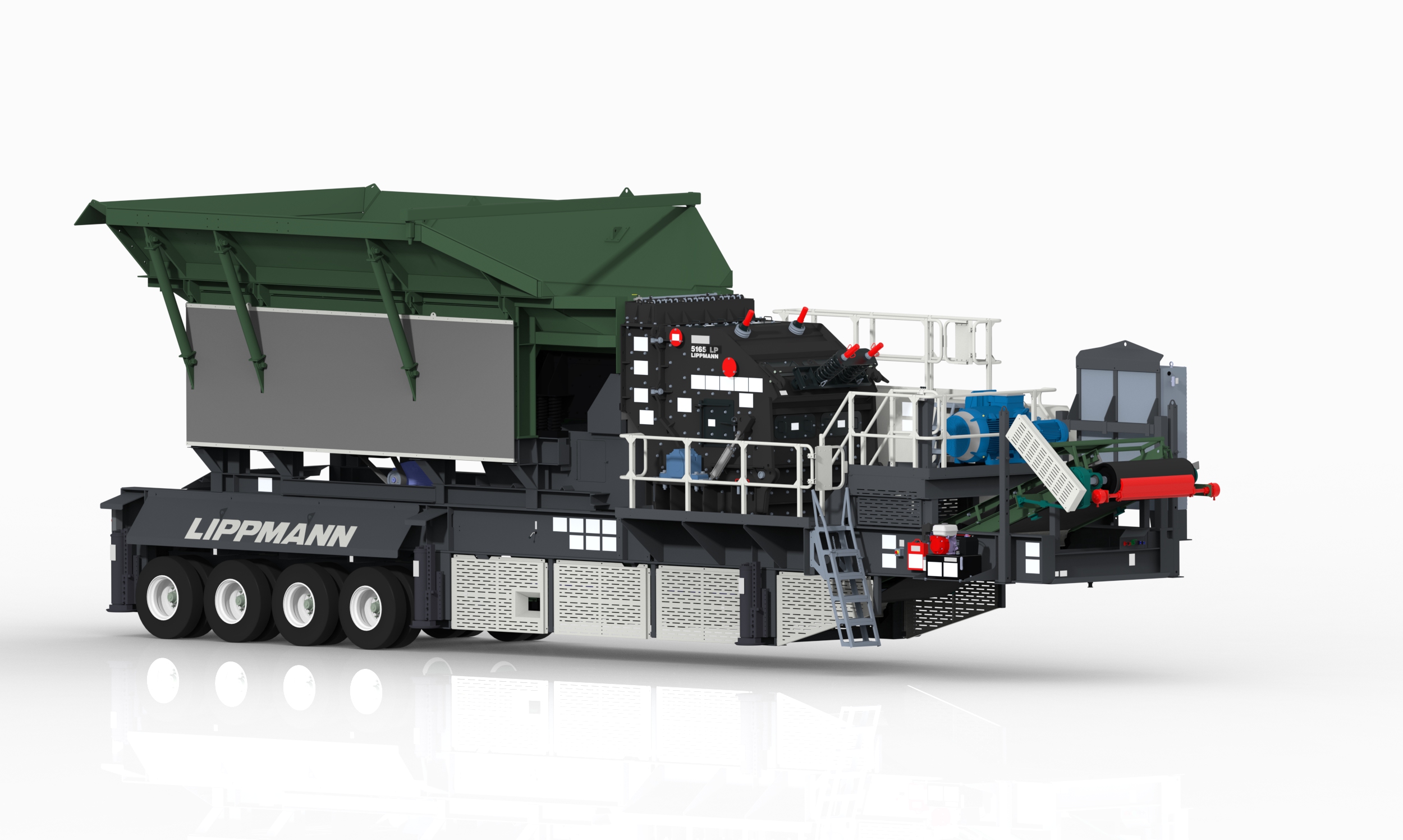

Primary Wheeled Impactor

5165ip-w

This plant is specifically designed to process primary feed in the toughest of applications with an extremely high production rate
and minimal downtime.

With a high reduction ratio, this plant is ideal for aggregate and recycle applications and accepts a front discharge conveyor and a return chute to be paired up with a screen plant to make a closed circuit plant as applications require it.

The Lippmann Edge

Long Life Hammers

Hammers are rectangular in shape with four wear positions. This shape provides the most even production and product gradation. When utilized correctly, each blow bar will offer four flips, extending the life of the wear components. Depending on the application, Lippmann can provide a variety of different hammer compositions. From high chrome, high carbon limestone applications to low chrome, low carbon recycle applications, Lippmann is able to provide the correct blow bar for the job.

Premium Shaft and Rotor

The premium, high alloy steel shaft is held with keyless locking assemblies. These keyless locking rings offer superior locking capabilities over keyed shaft applications due to the impact bending loads that are experienced. The rotor houses premium blow bars using a jack and stand configuration. The force of the jacking assembly causes the hammers and rotor backing beams to act as a solid mass while crushing. This rigid, machine fit enables the use of more wear resistant, higher chrome hammers and yields greater production before turning or replacing hammers.

Easily Adjustable Curtains and Wear Resistant Liners

To ensure efficiency, all frame and apron liners are drilled and tapped using a standard hex head cap screws and locking washers. Liners are a premium, abrasion-resistant materials that are easily replaceable after wear. Curtain position is maintained through a combination of both gravity and spring loaded configurations, allowing for easy adjustment from outside of the crusher.

Standard Features & Options

Standard Features

Andreas type impact crusher design
Inspection door on side of the machine.
High ratio of reduction
Hammers have four crushing positions to maintain a more consistent gradation and greater top size control
No weld build-up required
One gravity and one spring-loaded curtain with optional third grinding curtain

Options

Hydraulic leveling jacks – (4) 70,000 lbs
Six (6) run-on jack legs
NEMA 12-motor control center
Tire bulkheads

Technical Specs

GENERAL SPECIFICATIONS
Impactor	51″ X 65′
RPM	378-572 rpm
Feed Size	34″
Feeder	62″ x 24″
Feeder Operating Speed	830 rpm
Grizzly Length	10′
Impactor Horsepower	400 hp
Feeder Horsepower	60 hp

CAPACITY
MATERIAL	SETTING	CAPACITY	MAXIMUM FEED SIZE
	IN	TONS	IN
Limestone
	2	250-330	24
	3	255-340	26
	4	260-350	26
	5	300-380	26
Gravel
	2	250-330	10
	3	255-340	12
	4	260-350	12
	5	300-380	12
Concrete
	2	250-330	20
	3	255-340	26
	4	260-350	26
	5	300-380	26
Asphalt
	2	250-330	30
	3	255-340	34
	4	260-350	34
	5	300-380	34

Secondary apron to hammer tip clearance in inches and cm

WEIGHT
Tires	12R22.5
Hopper Module	52,250 lbs
Quad	62,250 lbs
King	56,750 lbs
Total	171,250 lbs
