INDUSTRY: Mining, Aggregates • material type: Hard Rock
CUSTOM Wheeled CONE Plant

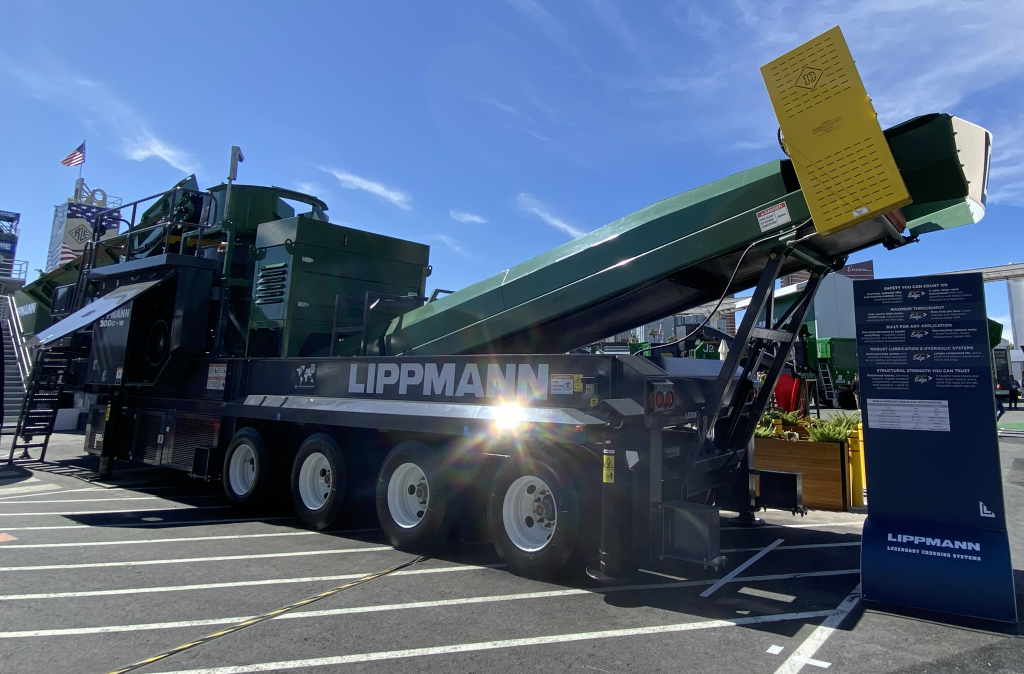

500c-w Cone Plant
When mobility and toughness matter, count on
Lippmann’s largest cone crusher plant: the 500c-w.
This high-production unit was specifically designed
to take on the most abrasive and toughest materials
in aggregates and mining—all with mobile capabilities.
An impressive 60″ (1520mm) cone crusher lets you
directly feed the plant and handle larger, secondary
rock it might see from a big primary crusher for an
impressive throughput of 750-800 TPH.
Note: The 500c-w is a custom model and your final machine will look and have technical specs unique to your requirement.
Highlights

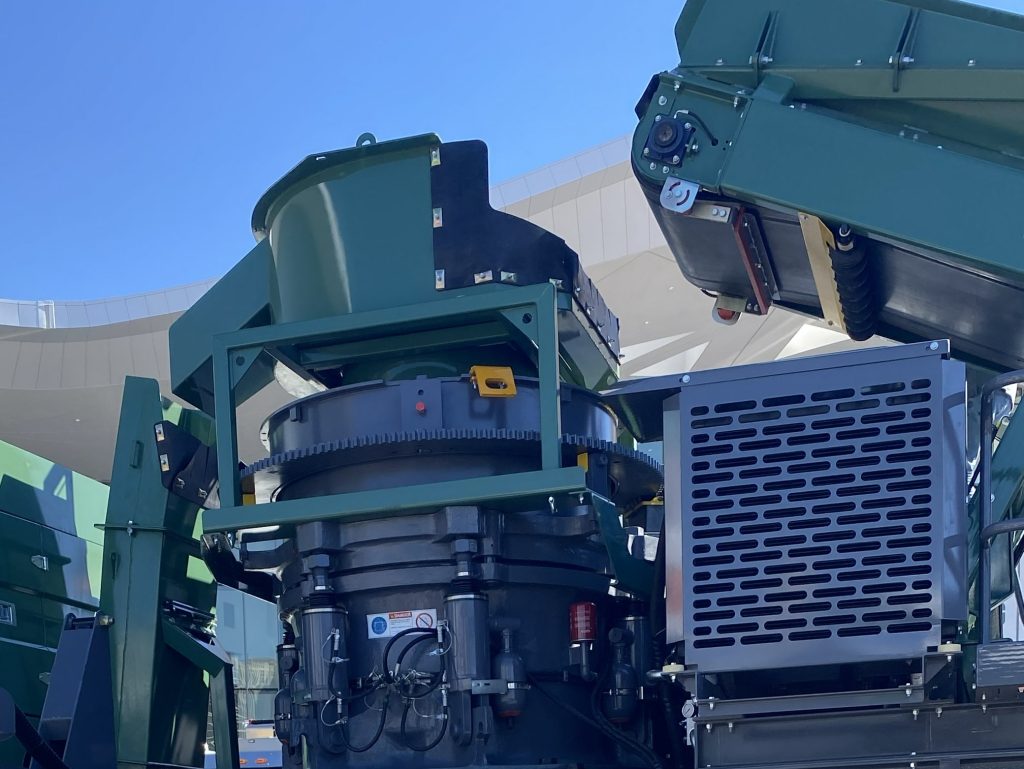

500c bushing-type high speed cone crusher
Overflow chute

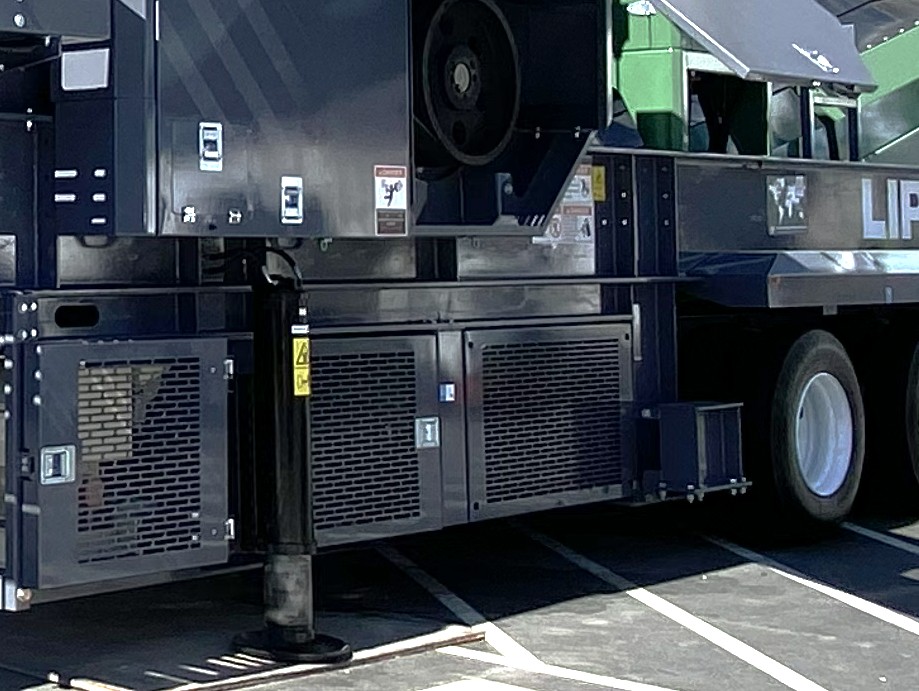

(6) Hydraulic run-on jack legs
54" (1372mm) Rear discharge conveyor
Quad-axle hutch spring suspension

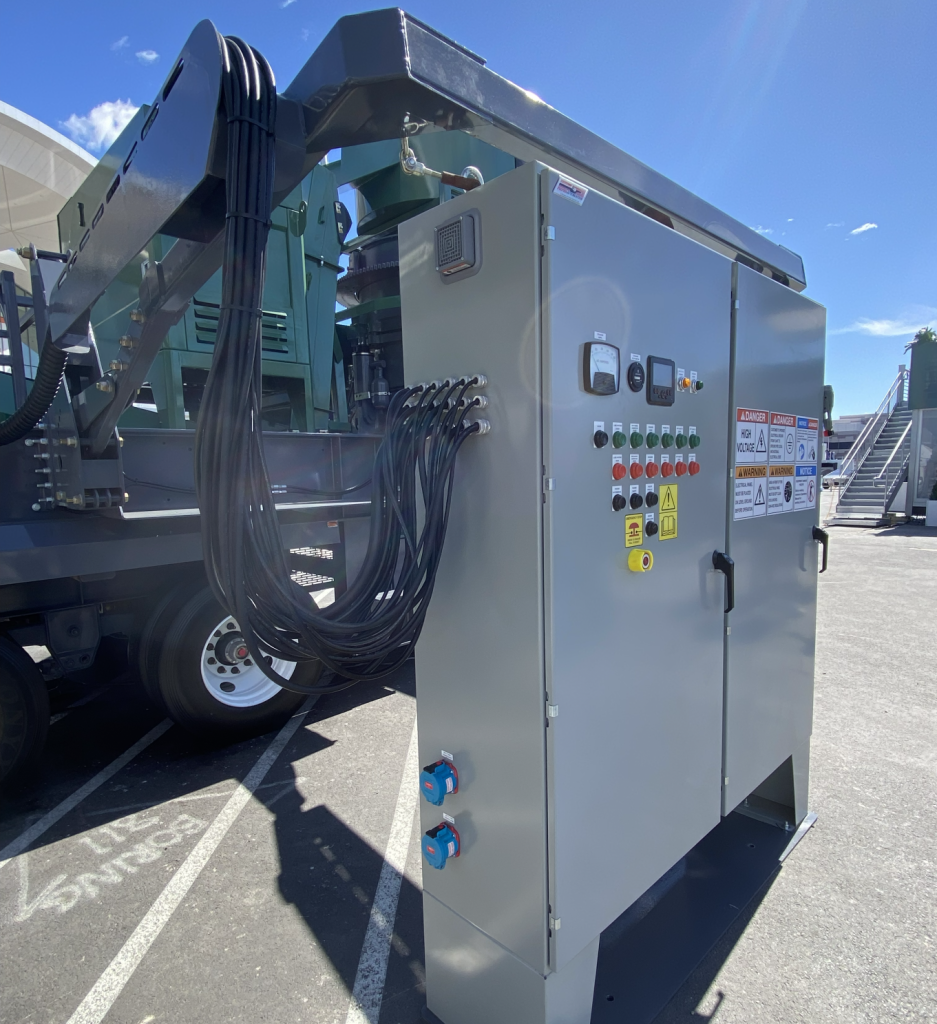

Hydraulically-lifted electrical panel
NEMA 12-Motor control center
The Lippmann Edge
Overflow Chutes
Overflow chutes prevents spillage, keeping product moving, and maintaining a clean site.

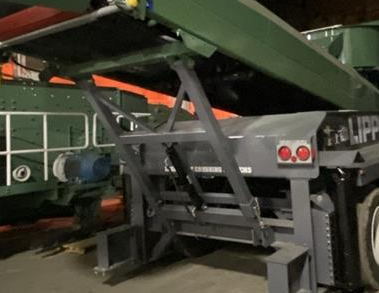

Hydraulic Height Adjustment

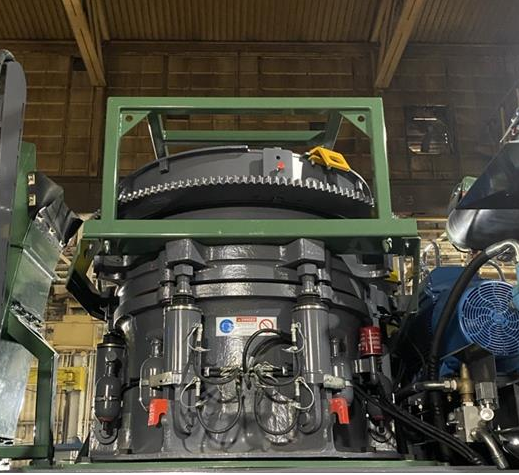

Removable Feed Cone
Standard Features & Options
Standard Features
- 500 Hp 1200 RPM (355kW 20Hz)
- Bushing-type cone with superior speed throw and cavity design
- Multiple liner configurations
- 4-axle carrier
- Large walkways for easy access to crusher and auxiliary items
- 54″ (1372mm) Rear discharge conveyor
Options
- Overflow chute
- NEMA 12-motor control center
- (4) Leveling hydraulic jacks – 70,000 lbs (31,752kgs)
- (6) Run-on jack legs
Technical Specs
| GENERAL SPECIFICATIONS | ||
|---|---|---|
| US | METRIC | |
| Crusher | 500c | 500c |
| Head Diameter | 60″ | 1520mm |
| Hydraulic Capacity | 39.6 gal | 150L |
| Lube Oil Capacity | 132 gal | 500L |
| Discharge Conveyor | 54″ x 32″ | 1372mm x 813mm |
| Conveyor Discharge Height | 10′ | 254mm |
| POWER | ||
|---|---|---|
| HP | KW | |
| Crusher | 500 | 355 |
| Hydraulic Power Unit | 10 | 7.46 |
| Lube Unit | 10 | 7.46 |
| Air Oil Cooler | 7.5 | 5.59 |
| Heaters | 16 | 12 |
| Rear Discharge Conveyor | 25 | 18.64 |
| TRANSPORTATION | ||||||
|---|---|---|---|---|---|---|
| AXLE | KING PIN | TOTAL | ||||
| LBS | KGS | LBS | KGS | LBS | KGS | |
| Standard Configuration | 79,000 | 35,834 | 48,000 | 21,772 | 126,000 | 57,153 |
Lippmann reserves the right to make changes to the information and design of the machines on this website without reservation and notification to the users. Information at time of publication is considered accurate – Lippmann assumes no liability resulting from errors or omissions in this document.
