YOUR ADAPTABLE, PRODUCTIVITY POWERHOUSE.

Find a Dealer

INDUSTRY: Aggregates, Recycle

material type: Hard Rock, Concrete

Wheeled CONE Plant MODEL

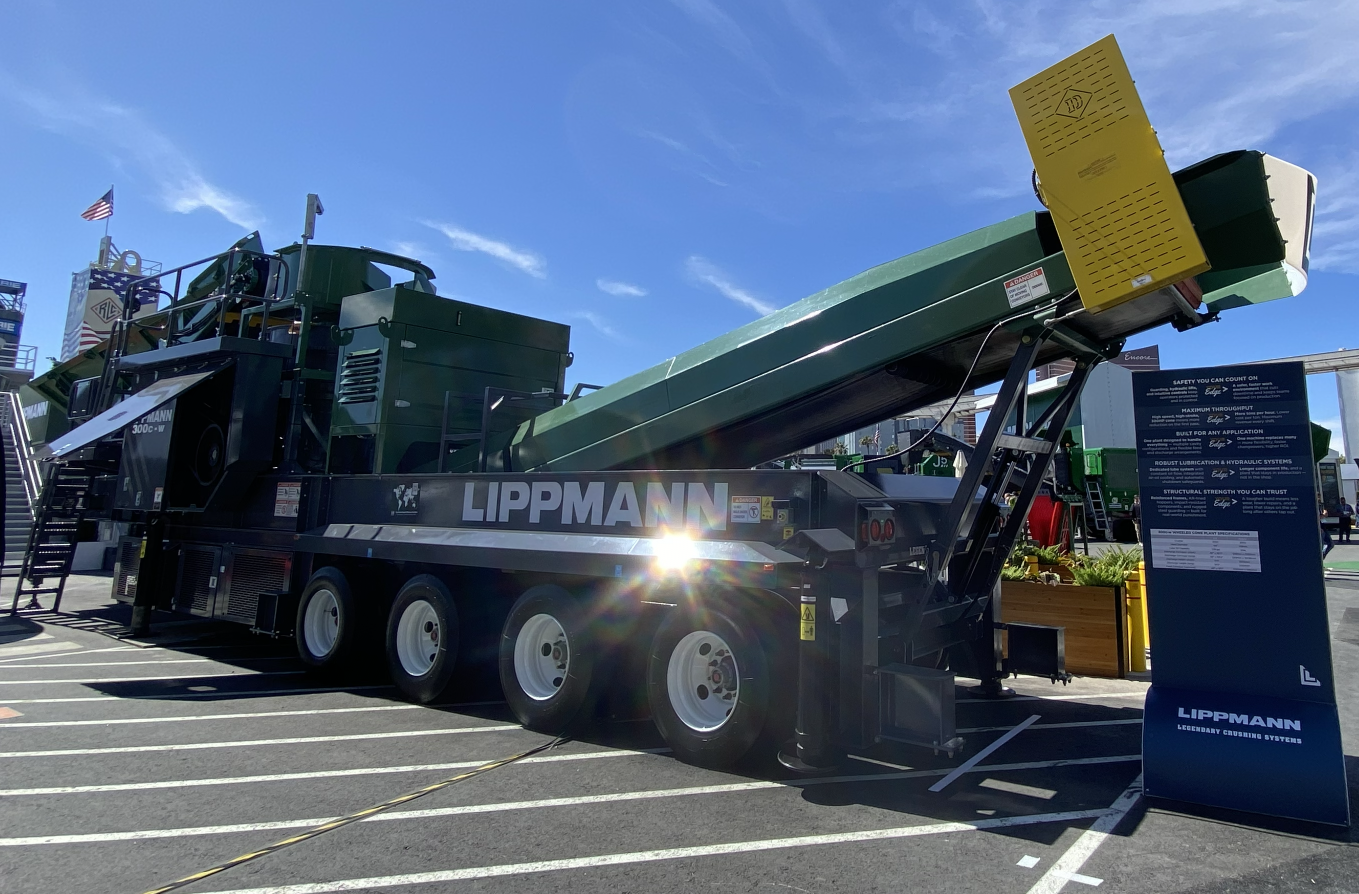

300c-w Cone Plant

Built for producers who don’t compromise, the Lippmann 300C‑W Wheeled Cone Plant delivers the power, flexibility, and uptime today’s operations demand. With fast changeovers, configurable cavities, and adaptable feed and discharge options, it’s ready for any material or spec. Turn up production, control wear, and keep crushing—this is a cone plant built to work harder and win every shift.

300c-w Brochure
  • Listen to our latest podcast that takes a closer look at the 300c-w Cone Plant

Highlights

Optional hydraulic raise/lower electrical panel lowers to ground level for safe, easy access while minimizing vibration transfer to the panel for smoother, more reliable operation.

Overflow chute helps contain material and reduce the risk of spillage and falling debris around the plant.

Hydraulic run-on or leveling jack options.

300 HP performance in a 44" bronze‑bushing cone built for tough crushing.

48" wide discharge conveyor with multiple length options. The optional extended discharge conveyor hydraulically folds for easier transport and setup.

Triple‑axle and quad‑axle configurations available to match local transport requirements.

Optional feeder module raises and lowers hydraulically for quick setup, easy maintenance access, and efficient material flow control.
Engineered safety throughout, including a one‑way access door on the service platform to control traffic flow and reduce risk during maintenance.

Steel guarding around the conveyor tail with a hinged access door improves safety while allowing quick, convenient access for inspection and maintenance.

Safety‑focused design with easy‑access emergency stops for quick shutdown and faster response.

Guarding at critical nip points is another way safety has been thoughtfully integrated throughout the plant

The Lippmann Edge

Lippmann Cone

Unlock Maximum Production Flexibility

The Lippmann Cone Plant is purpose‑built for operators who need flexibility without compromising performance.

Its modular, open‑circuit design allows multiple configurations—integrating different screening, recirculation, and material flow options to meet specific production goals. Designed to adapt as applications, material conditions, or capacity requirements change, Lippmann delivers one cone plant with virtually unlimited adaptability, maximizing uptime and long‑term value.
CrushCast Quick Take

Learn how built-in safety features protect your crew without slowing production.

Built-in Safety Features

The Lippmann Cone Plant is designed with operator safety in mind, featuring guarding at all nip points, steel guarding around the conveyor tail with a hinged access door, easy‑to‑reach emergency stops, and a one‑way door on the service platform.

CrushCast Quick Take

Learn how built-in safety features protect your crew without slowing production.

Optional Hydraulic Lift-Off Control Panel

CrushCast Quick Take

Learn how safer control panel access speeds up setup and changeovers, while protected, pre‑routed wiring reduces wear and extends cable life.

Overflow Chutes

Overflow chutes prevents spillage, keeping product moving, and maintaining a clean site.

Hydraulic Height Adjustment

Hydraulic height adjustment on discharge conveyor.

Removable Feed Cone

Removable feed cone for improved transportability.

Standard Features & Options

  • 300 HP high-performance bushing cone crusher
  • Bronze bushings
  • Hydraulic bowl adjustment
  • 20 HP, 48″ (1219mm) wide discharge conveyor (multiple length options available)
  • Adjustable height discharge conveyor
  • Full-length flashing
  • Push-button controls
  • Premium lubrication and hydraulics for consistent oil flow
  • Extensive, built-in safety features throughout
  • Six drop-down crib legs
  • 8′ long lockable storage box
  • Full-length fenders
  • Drop-down front support legs
  • Gas power unit to run jacks and hydraulic cylinders
  • 4 hydraulic leveling jacks
  • Electrical panel
  • Hydraulic lift-off for electrical panel
  • Extended discharge conveyor
  • Feeder module
  • Hopper extensions for feeder module
  • Metal detector (only available with the feeder module option)
  • Wide variety of cavity selections available
  • Triple- or quad-axle configuration options

Technical Specs

CRUSHING CHAMBER
US METRIC
Head Diameter 44” 1118mm
Cone Type Bushing Bushing
Cone HP 300hp 224kW
Feed Opening 8.31” 211mm
Min. Opening 0.50” 13mm
Max. Opening 0.75” 19mm
CSS Adjustment Hydraulic Hydraulic
CONVEYOR
 USMETRIC
Discharge Height (short) 11′ 5″3505mm
Width48″1219mm
Length36′ 11″11.25m
Angle AdjustableYESYES
POWER
 USMetric
PanelWired to terminal box w. opt NEMA-12 motor control centerWired to terminal box w. opt NEMA-12 motor control center
Voltage460V460V
Hydraulic Tank Capacity20 US gal76L
DIMENSIONS
 USMETRIC
Transport Length60′ 1″18.31m
Transport Width12′ 0″3.66m
Transport Height13′ 11″4.24m
Operation Length57′ 6.5″17.54m
TOTAL WEIGHT
 USMETRIC
Total Weight115,742 lbs (EST.)52,500kg (EST.)

Lippmann reserves the right to make changes to the information and design of the machines on this website without reservation and notification to the users. Information at time of publication is considered accurate – Lippmann assumes no liability resulting from errors or omissions in this document.
